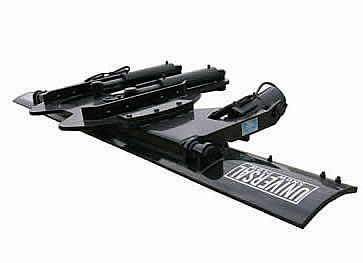

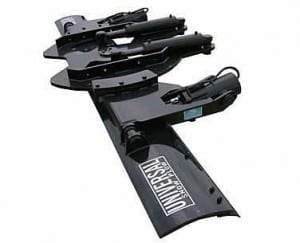

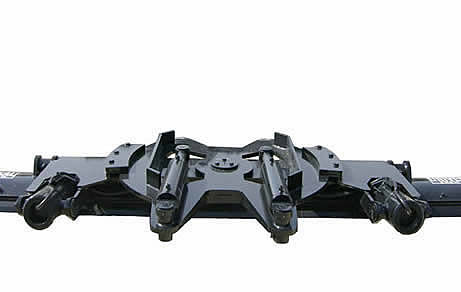

• 1″ thick x 17″ high a36 steel moldboard
  • 5″ center pin with three 5/8″ mounting bolts
  • Center pin bushing is replaceable
  • 2-1/2″ diameter hinge shaft
  • 2 heavy duty shock absorbers
  • 2 3-1/2″ actuating cylinders with 2″ nitrided rods
  • 1″ solid notchless reversing circle
  • 4″ reversing cylinders with 2″ cylinder rods
  • Reverse cylinder pins have removable top washers to aid in the ease of service
  • Hold blocks with 3/8″ uhm poly wear pads
  • 96″ long solid shaft with 4 hinge points
  • 2 hinges are gussetes with 3/4″ material
  • Greaseable pivot points
  • 10′, 11′, 12′ lengths
  • 16″, 18″, 20″ board heights
  • Step kit, orange end option
  • Bolt-on ext. option
  • Available completely fixed with dual up/down cylinders
