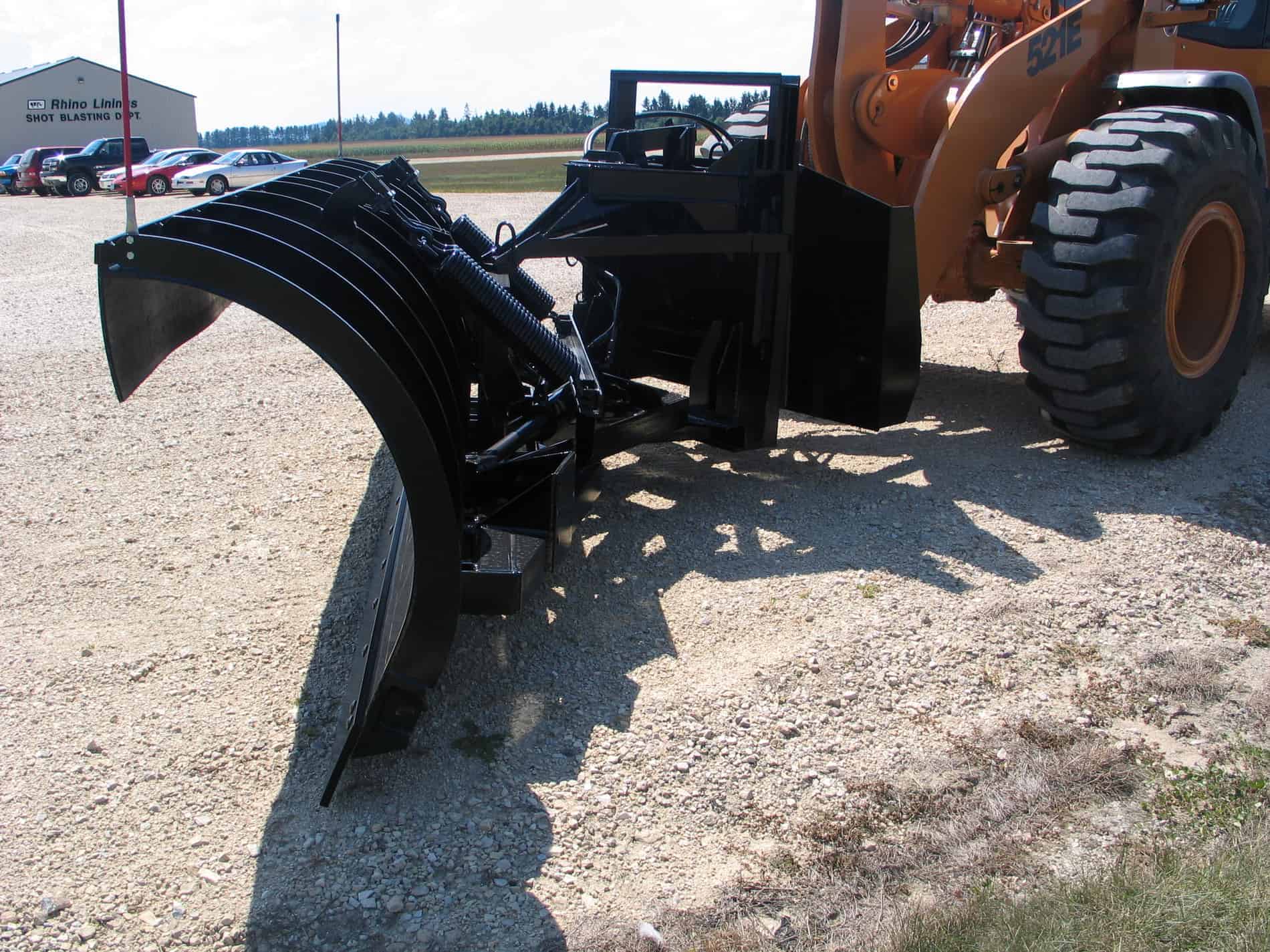

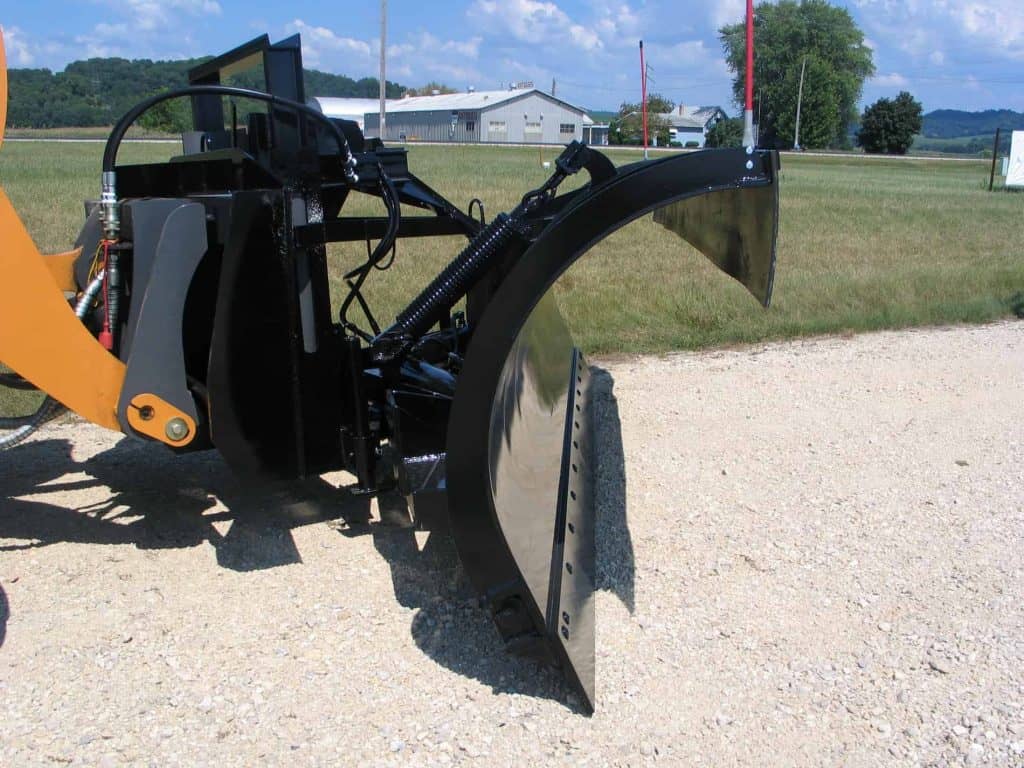

UNIVERSAL MODEL UTA REVERSIBLE SNOW PLOW FOR LOADER APPLICATION

  • Full moldboard trip with (4) external extension type springs
  • Also available with trip cutting edge and combination trip cutting edge/moldboard trip
  • 10’/11’/12′ standard lengths (longer lengths available upon request)
  • 38″/43″/48″/53″ plow heights available (measured with six inch cutting edge)
  • 10 GA. moldboard
  • 2 heavy duty 4″ X 19″ reversing cylinders with 2″ nitrided rods
  • Cylinders are mounted above the push frame
  • Ten 1/2″ ribs, fully welded
  • Push frame is 117″ wide with 6 main hinge points
  • Push frame constructed with 3/8″ thick square tubing
  • 3/4″ X 4″ X 4″ lower angle
  • 5/8″ X 8″ cutting edge with standard aasho punch
  • Various plow hitches available, plow and loader portions
  • DXV Cushion valve to protect reversing cylinders (shipped loose)
  • Rubber snow flap, 3-ply, 1/2″ thick x 12″ wide (installed with carbon steel retainer bar)
  • Rubber snow flap, 3-ply, 1/2″ thick x 18″ wide (installed with carbon steel retainer bar)
  • Stainless Steel retainer bar, bolts, and nuts for rubber flap in lieu of carbon steel
  • Plow end markers, 27″ red cable type (installed)
  • Plow end markers, 36″ orange cable type (installed)
  • Plow end markers, 28″ orange plastic type (installed)
  • Plow end markers, 36″ orange plastic type (installed)
  • Plow end markers, 48″ orange plastic type (installed)
  • Crank adjustable parking stand, (installed)
  • Heavy Duty push frame
  • Shoe brackets only, installed (no shoe assembly included) (need to order shoe assembly separate)
  • Adjustable mushroom shoes with standard pads (installed)
  • Adjustable mushroom shoes with Ni-Hard pads (installed)
  • Adjustable shoes with Flat shoe pad style (installed)
  • Snow Wheel Shoe brackets & Snow Wheel Assembly
  • One Piece Trip Cutting Edge in lieu of moldboard trip (10′ & 11′ plow)
  • One Piece Trip Cutting Edge in lieu of moldboard trip (12′ plow)
  • Three piece trip cutting edge in lieu of moldboard trip (11′ & 12′ plows only)
  • Moldboard Trip/Trip cutting edge combination
  • Individually replaceable trip springs in lieu of standard trip springs (all trip edge plows)
  • 3/4″ x 4″ x 4″ lower trip edge angle ILO std. 1/2″ x 3″ x 4″ (all trip edge plows)
  • Curb shoe (installed)
  • Cutting edge shoe (installed)
  • Carbide cutting blades 3/4″ x 6″
  • 3/4” re-rod welded to each end of the plow
  • Guard rail corner cut
  • Weld on Customer ID Numbers on the Plow Moldboard (location details are required)
  • 3/16″ moldboard in lieu of standard
  • 10ga. 201 or 304 stainless steel moldboard in lieu of standard
  • 7ga. 201 or 304 stainless steel moldboard in lieu of standard
