NOTE: Selector valved required or (2) Auxiliary hydraulic valves are required to angle each wing section
NOTE: Common loader couplers, ACS, JRB, VOL120, Cat Fusion

  • 12ft. 5in. overall length
  • 43in. height
  • 3/16 in. thick moldboard
  • Straight 149” (12ft. 5in.)
  • Vee position 135”
  • Scoop position 130”
  • 2-Piece Trip Cutting Edge with ¾” x 4” x 4” lower trip edge angle
  • Three (3) heavy duty torsion type springs on each side
  • Trip springs can be replaced individually
  • 5 full ribs on each side of moldboard (10 total) – ½” thick
  • Center plate – so snow does not come over plow
  • Enclosed center pivot area
  • 2” center pivot pin, Greasable with 8 bushings
  • Replaceable center wear puck
  • Positioning Cylinders have a 4” Bore with 2” Nitro Rod and 14¾” Stroke
  • Two (2) DXV cushion valve to protect the positioning cylinders
  • Two (2) 4” Pre-Charged Nitrogen Accumulators
  • Adjustable skid shoes…bolt adjustable (Flat or Mushroom Type)
  • Two (2) cutting edge blades are ¾” x 8” x 6’
  • Rubber snow deflector is 3 ply, ½” thick x 12” wide
  • Plow end markers, cable type
  • Includes 29” Husting Hitch plow & truck portions
  • Loader coupler is welded to one side of 3/8” steel plate of the truck portion of 29” Husting hitch is welded to the other side
  • Primed & painted std. black (other colors available)
  • DXV Cushion valve to protect reversing cylinders (shipped loose)
  • Rubber snow flap, 3-ply, 1/2″ thick x 12″ wide (installed with carbon steel retainer bar)
  • Rubber snow flap, 3-ply, 1/2″ thick x 18″ wide (installed with carbon steel retainer bar)
  • Stainless Steel retainer bar, bolts, and nuts for rubber flap in lieu of carbon steel

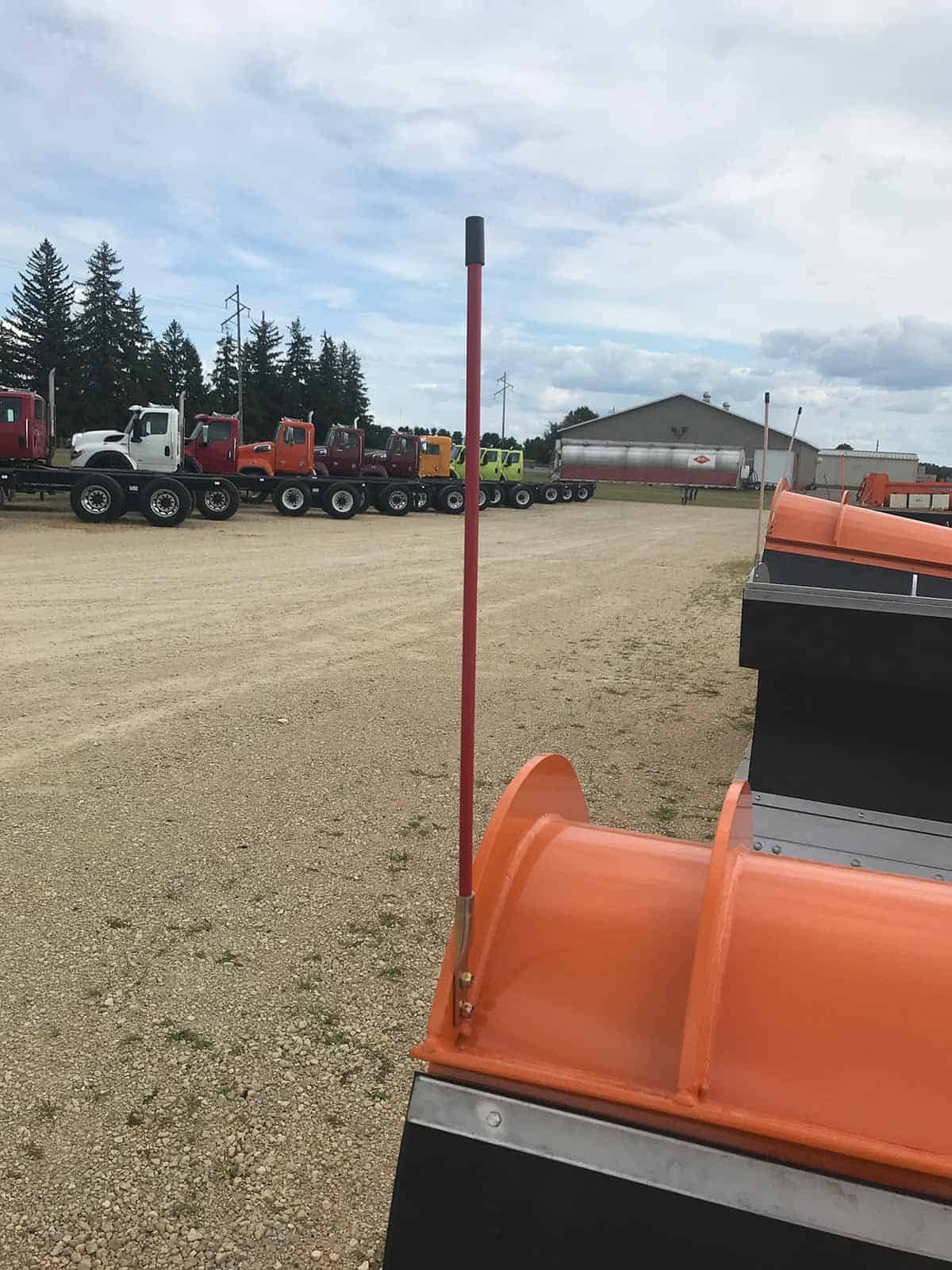

  • Plow end markers, 27″ red cable type (installed)
  • Plow end markers, 36″ orange cable type (installed)
  • Plow end markers, 28″ orange plastic type (installed)
  • Plow end markers, 36″ orange plastic type (installed)
  • Plow end markers, 48″ orange plastic type (installed)

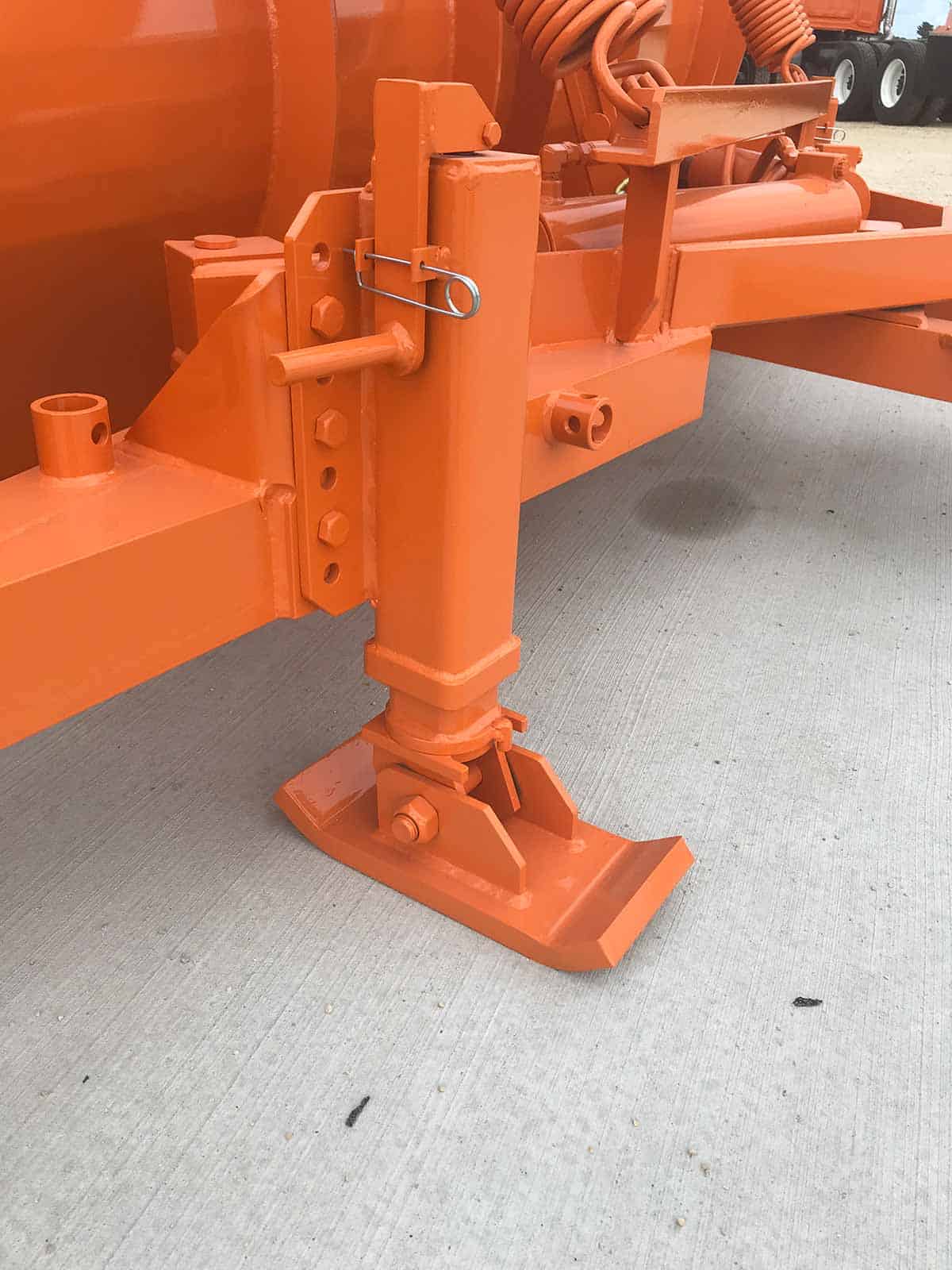

  • Crank adjustable parking stand, (installed)
  • Heavy Duty push frame
  • Shoe brackets only, installed (no shoe assembly included) (need to order shoe assembly separate)
  • Adjustable mushroom shoes with standard pads (installed)
  • Adjustable mushroom shoes with Ni-Hard pads (installed)
  • Adjustable shoes with Flat shoe pad style (installed)
  • Snow Wheel Shoe brackets & Snow Wheel Assembly
  • One Piece Trip Cutting Edge in lieu of moldboard trip (10′ & 11′ plow)
  • One Piece Trip Cutting Edge in lieu of moldboard trip (12′ plow)
  • Three piece trip cutting edge in lieu of moldboard trip (11′ & 12′ plows only)
  • Moldboard Trip/Trip cutting edge combination

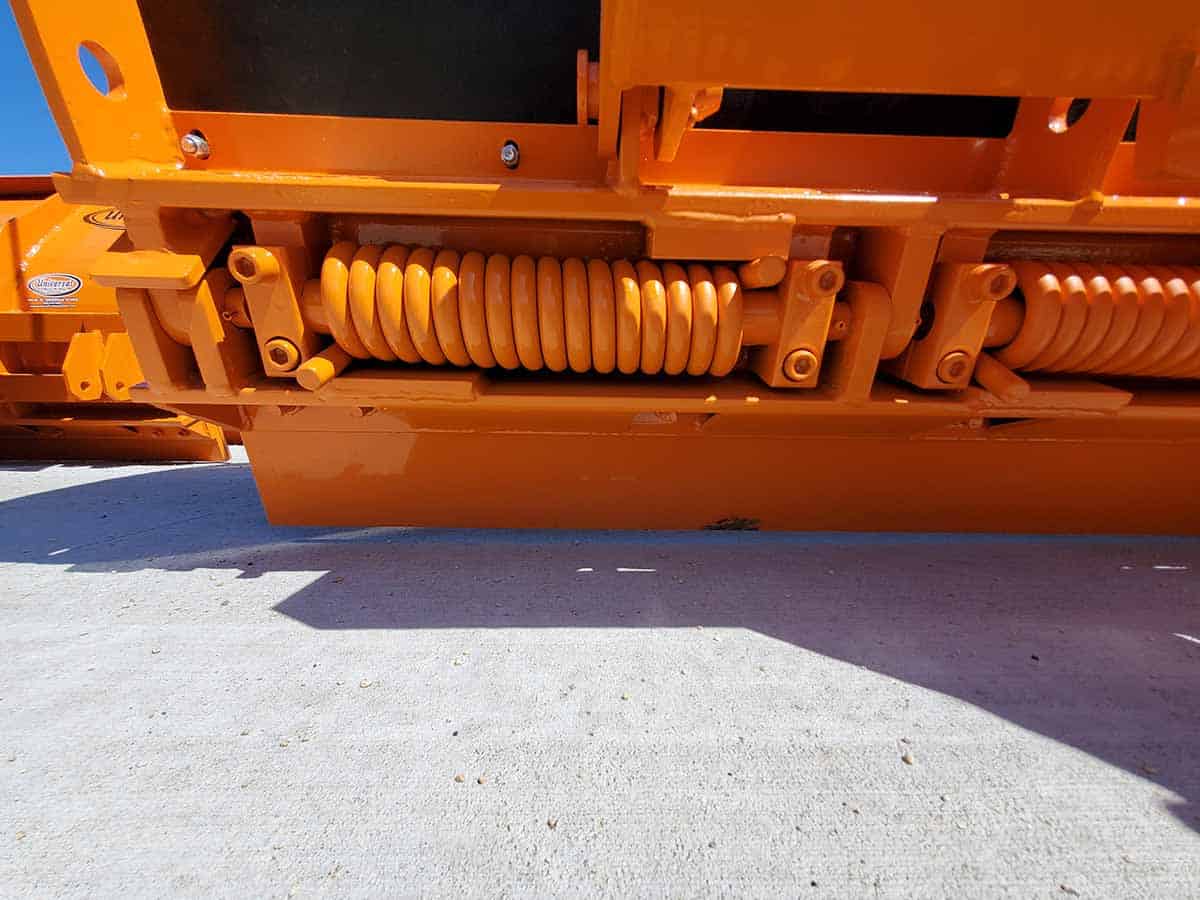

  • Individually replaceable trip springs in lieu of standard trip springs (all trip edge plows)
  • 3/4″ x 4″ x 4″ lower trip edge angle ILO std. 1/2″ x 3″ x 4″ (all trip edge plows)
  • Curb shoe (installed)
  • Cutting edge shoe (installed)
  • Carbide cutting blades 3/4″ x 6″
  • 3/4” re-rod welded to each end of the plow

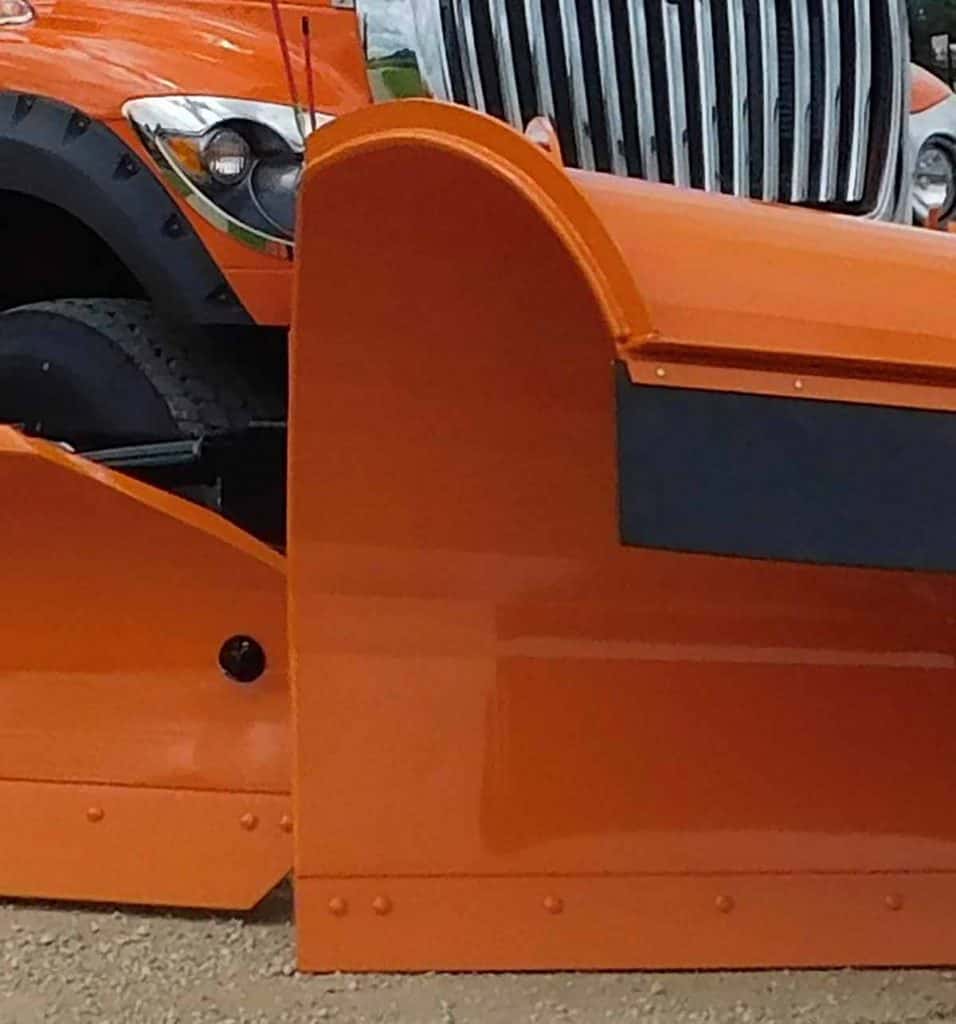

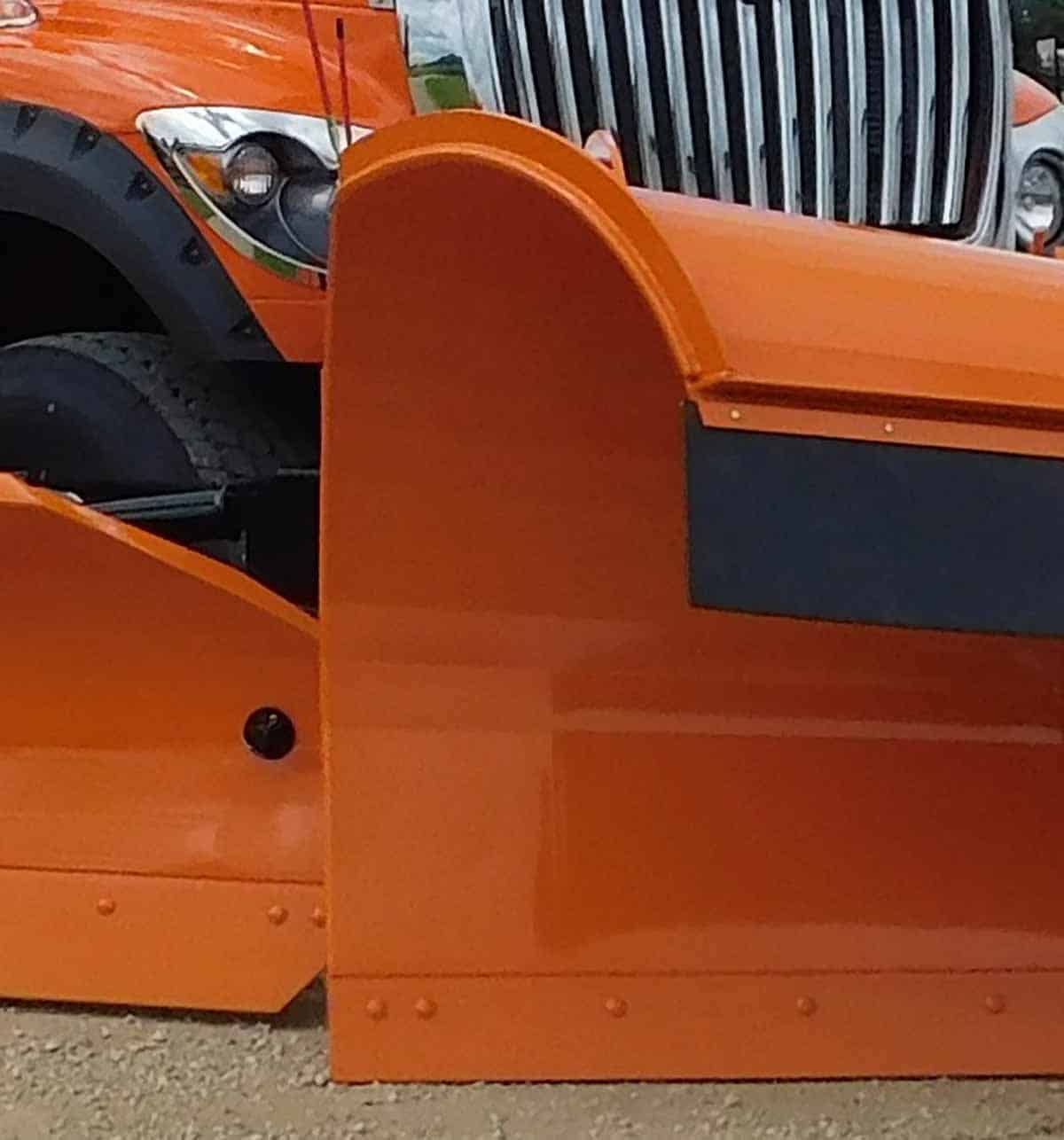

  • Guard rail corner cut

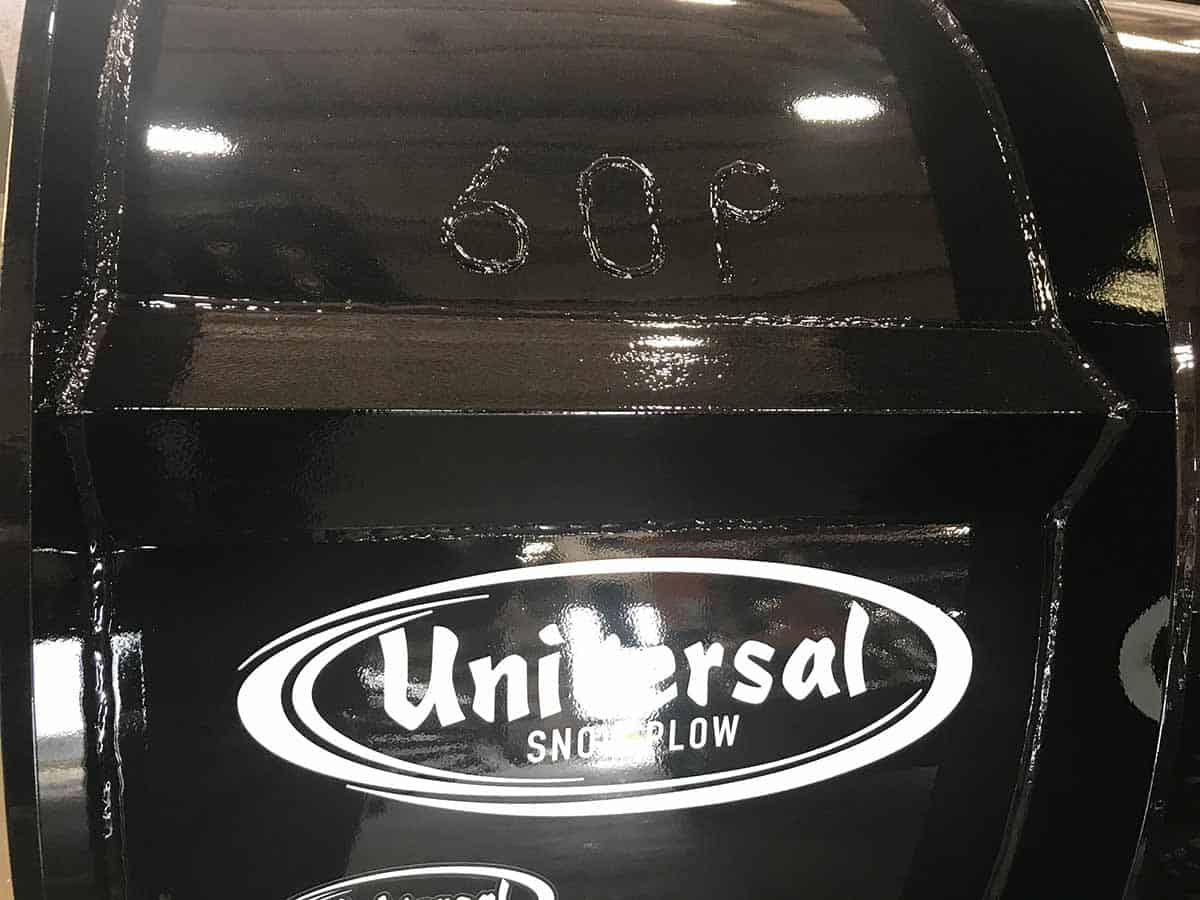

  • Weld on Customer ID Numbers on the Plow Moldboard (location details are required)
  • 3/16″ moldboard in lieu of standard
  • 10ga. 201 or 304 stainless steel moldboard in lieu of standard
  • 7ga. 201 or 304 stainless steel moldboard in lieu of standard
