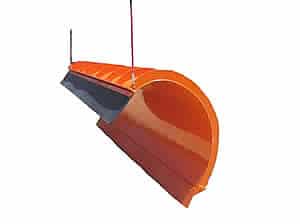

The Universal UTA model power reversible snow plow lifts level and reverses level. The power reverse cylinders are designed to permit overhaul using standard tools. The moldboard trip springs are tension adjustable.

  • Full moldboard trip with four (4) extension type springs
  • 10’/11’/12′ standard plow lengths
  • 38″/43″/46″/48″/52″ plow heights (measured with 6″ cutting blade)
  • 10 ga. moldboard
  • Eight (8) 1/2″ ribs, fully welded
  • Two (2) heavy duty 4″x 19″ reversing cylinders with 2″ nitrated rods
  • Cylinders are mounted above the push frame
  • Replaceable Brass Bushing at Dead End of Cylinders for Extended Wear
  • Push frame is 88″ wide with four (4) main hinge points (see options)
  • Push frame is constructed with 3/8″x 4″x 4″ square tubing
  • 3/4″x 4″x 4″ lower angle
  • Adjustable attack angles – 10 & 20 degrees
  • 5/8″x 8″ cutting edge with standard A.A.S.H.O. punch
  • Plow lifts level and reverses level
  • Various hitches available, plow and truck portions
  • Heavy Duty Push frame (HDP) is 117″ wide and constructed with 3/8″x 4″x 4″ square tubing, Ten (10) 1/2″ ribs (in lieu of eight) fully welded, Six (6) main hinge points (in lieu of four) with the furthest hinge point extending about 13″ from the end of the plow
  • Available in UTAW Model (Warped Board) height is 46″. Moldboard has larger curl/belly and a more relaxed cutting edge angle (approx. 26 degrees). This design will throw snow better and is more suitable for gravel and seal coated roads.
  • DXV Cushion valve to protect reversing cylinders (shipped loose)
  • Rubber snow flap, 3-ply, 1/2″ thick x 12″ wide (installed with carbon steel retainer bar)
  • Rubber snow flap, 3-ply, 1/2″ thick x 18″ wide (installed with carbon steel retainer bar)
  • Stainless Steel retainer bar, bolts, and nuts for rubber flap in lieu of carbon steel
  • Plow end markers, 27″ red cable type (installed)
  • Plow end markers, 36″ orange cable type (installed)
  • Plow end markers, 28″ orange plastic type (installed)
  • Plow end markers, 36″ orange plastic type (installed)
  • Plow end markers, 48″ orange plastic type (installed)
  • Crank adjustable parking stand, (installed)
  • Heavy Duty push frame
  • Shoe brackets only, installed (no shoe assembly included) (need to order shoe assembly separate)
  • Adjustable mushroom shoes with standard pads (installed)
  • Adjustable mushroom shoes with Ni-Hard pads (installed)
  • Adjustable shoes with Flat shoe pad style (installed)
  • Snow Wheel Shoe brackets & Snow Wheel Assembly
  • One Piece Trip Cutting Edge in lieu of moldboard trip (10′ & 11′ plow)
  • One Piece Trip Cutting Edge in lieu of moldboard trip (12′ plow)
  • Three piece trip cutting edge in lieu of moldboard trip (11′ & 12′ plows only)
  • Moldboard Trip/Trip cutting edge combination
  • Individually replaceable trip springs in lieu of standard trip springs (all trip edge plows)
  • 3/4″ x 4″ x 4″ lower trip edge angle ILO std. 1/2″ x 3″ x 4″ (all trip edge plows)
  • Curb shoe (installed)
  • Cutting edge shoe (installed)
  • Carbide cutting blades 3/4″ x 6″
  • 3/4” re-rod welded to each end of the plow
  • Guard rail corner cut
  • Weld on Customer ID Numbers on the Plow Moldboard (location details are required)
  • 3/16″ moldboard in lieu of standard
  • 10ga. 201 or 304 stainless steel moldboard in lieu of standard
  • 7ga. 201 or 304 stainless steel moldboard in lieu of standard
