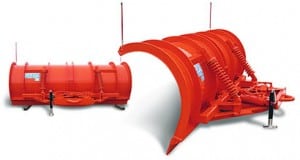

The push frame width at 102″ exceeds all other comparable plows. The power reverse cylinders are designed to permit overhaul using standard tools. The cylinders are mounted above the push frame which allows easy access got maintenance and also reduces the sand-blast effect of road material.

  • Full moldboard trip with two (2) compression type springs
  • 10’/11’/12′ standard plow lengths
  • 38″/43″/48″/52″ plow heights (measured with 6″ cutting blade)
  • 10 ga. moldboard
  • Eight (8) 1/2″ ribs, fully welded
  • Two (2) heavy duty 4″x 10″ reversing cylinders with 2″ nitrated rods
  • Cylinders are mounted above the push frame
  • 1/2″x 3-1/2″x 3-1/2″ semi-circle
  • Push frame is 102″ wide with six (6) main hinge points
  • Push frame constructed with 3/8″x 4″x 4″ square tubing
  • 3/4″x 4″x 4″ lower angle
  • Adjustable attack angles – 5, 10 & 20 degree
  • 5/8″x 8″ cutting edge with standard AASHO punch
  • Plow lifts level and reverses level
  • Various hitches available, plow & truck portions
  • DXV Cushion valve to protect reversing cylinders (shipped loose)
  • Rubber snow flap, 3-ply, 1/2″ thick x 12″ wide (installed with carbon steel retainer bar)
  • Rubber snow flap, 3-ply, 1/2″ thick x 18″ wide (installed with carbon steel retainer bar)
  • Stainless Steel retainer bar, bolts, and nuts for rubber flap in lieu of carbon steel
  • Plow end markers, 27″ red cable type (installed)
  • Plow end markers, 36″ orange cable type (installed)
  • Plow end markers, 28″ orange plastic type (installed)
  • Plow end markers, 36″ orange plastic type (installed)
  • Plow end markers, 48″ orange plastic type (installed)
  • Crank adjustable parking stand, (installed)
  • Heavy Duty push frame
  • Shoe brackets only, installed (no shoe assembly included) (need to order shoe assembly separate)
  • Adjustable mushroom shoes with standard pads (installed)
  • Adjustable mushroom shoes with Ni-Hard pads (installed)
  • Adjustable shoes with Flat shoe pad style (installed)
  • Snow Wheel Shoe brackets & Snow Wheel Assembly
  • One Piece Trip Cutting Edge in lieu of moldboard trip (10′ & 11′ plow)
  • One Piece Trip Cutting Edge in lieu of moldboard trip (12′ plow)
  • Three piece trip cutting edge in lieu of moldboard trip (11′ & 12′ plows only)
  • Moldboard Trip/Trip cutting edge combination
  • Individually replaceable trip springs in lieu of standard trip springs (all trip edge plows)
  • 3/4″ x 4″ x 4″ lower trip edge angle ILO std. 1/2″ x 3″ x 4″ (all trip edge plows)
  • Curb shoe (installed)
  • Cutting edge shoe (installed)
  • Carbide cutting blades 3/4″ x 6″
  • 3/4” re-rod welded to each end of the plow
  • Guard rail corner cut
  • Weld on Customer ID Numbers on the Plow Moldboard (location details are required)
  • 3/16″ moldboard in lieu of standard
  • 10ga. 201 or 304 stainless steel moldboard in lieu of standard
  • 7ga. 201 or 304 stainless steel moldboard in lieu of standard
  • S.S. board option/snowwheels
