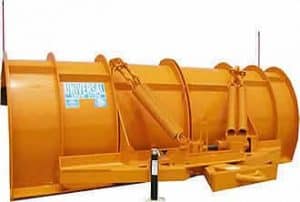

The single cylinder with the pivot point behind it allows the plow to swing faster and has as much or more power than comparable plows with dual cylinders. The heavy duty angle-type construction of semi-circle allows the plow to be mounted with less overhang on the front of the truck. The power reverse cylinder is designed to permit overhaul using standard tools.

  • Full moldboard trip
  • Four (4) extension type springs
  • 10’/11’/12′ standard plow lengths
  • 43″/46″/48″ plow heights (measured with 6″ cutting blade)
  • 10 ga. moldboard
  • Six (6) 1/2″ ribs, fully welded
  • One (1) heavy duty 4″x 13″ reversing cylinder with 2″ nitrated rod
  • Cylinder is mounted above the push frame
  • Push frame is 65″ wide with four (4) main hinge points (see options)
  • Push frame is constructed with 1/2″x 4″x 8″ angle iron
  • 3/4″x 4″x 4″ lower angle
  • 5/8″x 8″ cutting edge with standard A.A.S.H.O. punch
  • Plow lifts level and reverses level
  • Various hitches available, plow and truck portions
  • Heavy Duty Push frame (HDP) is 112″ wide and constructed with 1/2″x 4″x 8″ angle iron, Eight (8) 1/2″ ribs (in lieu of six), fully welded, Six (6) main hinge points (in lieu of four), with the furthest hinge point extending about 18″ from the end of the plow
  • Plow markers – plastic or cable
  • Rubber snow deflector
  • Available in BHW Model (Warped Board) Height is 46″. Moldboard has larger curl/belly and a more relaxed cutting edge (approx. 26 degrees). This design will throw snow better and is more suitable for gravel and seal coated roads.
  • DXV Cushion valve to protect reversing cylinders (shipped loose)
  • Rubber snow flap, 3-ply, 1/2″ thick x 12″ wide (installed with carbon steel retainer bar)
  • Rubber snow flap, 3-ply, 1/2″ thick x 18″ wide (installed with carbon steel retainer bar)
  • Stainless Steel retainer bar, bolts, and nuts for rubber flap in lieu of carbon steel
  • Plow end markers, 27″ red cable type (installed)
  • Plow end markers, 36″ orange cable type (installed)
  • Plow end markers, 28″ orange plastic type (installed)
  • Plow end markers, 36″ orange plastic type (installed)
  • Plow end markers, 48″ orange plastic type (installed)
  • Crank adjustable parking stand, (installed)
  • Heavy Duty push frame
  • Shoe brackets only, installed (no shoe assembly included) (need to order shoe assembly separate)
  • Adjustable mushroom shoes with standard pads (installed)
  • Adjustable mushroom shoes with Ni-Hard pads (installed)
  • Adjustable shoes with Flat shoe pad style (installed)
  • Snow Wheel Shoe brackets & Snow Wheel Assembly
  • One Piece Trip Cutting Edge in lieu of moldboard trip (10′ & 11′ plow)
  • One Piece Trip Cutting Edge in lieu of moldboard trip (12′ plow)
  • Three piece trip cutting edge in lieu of moldboard trip (11′ & 12′ plows only)
  • Moldboard Trip/Trip cutting edge combination
  • Individually replaceable trip springs in lieu of standard trip springs (all trip edge plows)
  • 3/4″ x 4″ x 4″ lower trip edge angle ILO std. 1/2″ x 3″ x 4″ (all trip edge plows)
  • Curb shoe (installed)
  • Cutting edge shoe (installed)
  • Carbide cutting blades 3/4″ x 6″
  • 3/4” re-rod welded to each end of the plow
  • Guard rail corner cut
  • Weld on Customer ID Numbers on the Plow Moldboard (location details are required)
  • 3/16″ moldboard in lieu of standard
  • 10ga. 201 or 304 stainless steel moldboard in lieu of standard
  • 7ga. 201 or 304 stainless steel moldboard in lieu of standard
  • Mailbox cut
  • S.S. board option
  • 1 piece formed pushframe
