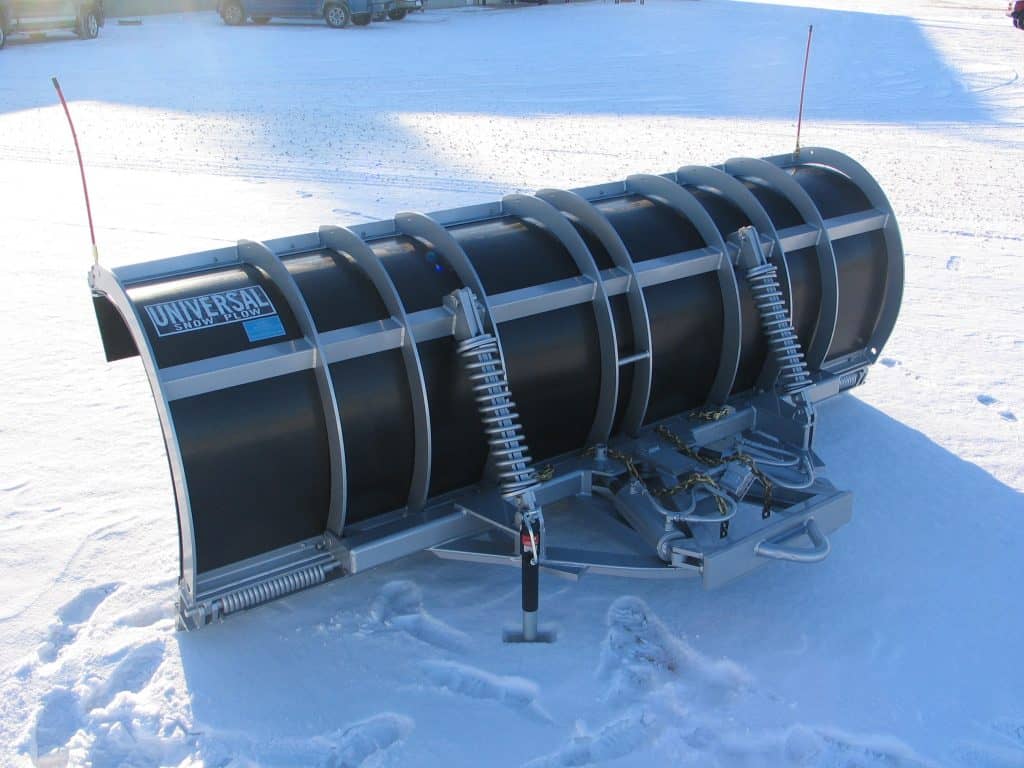

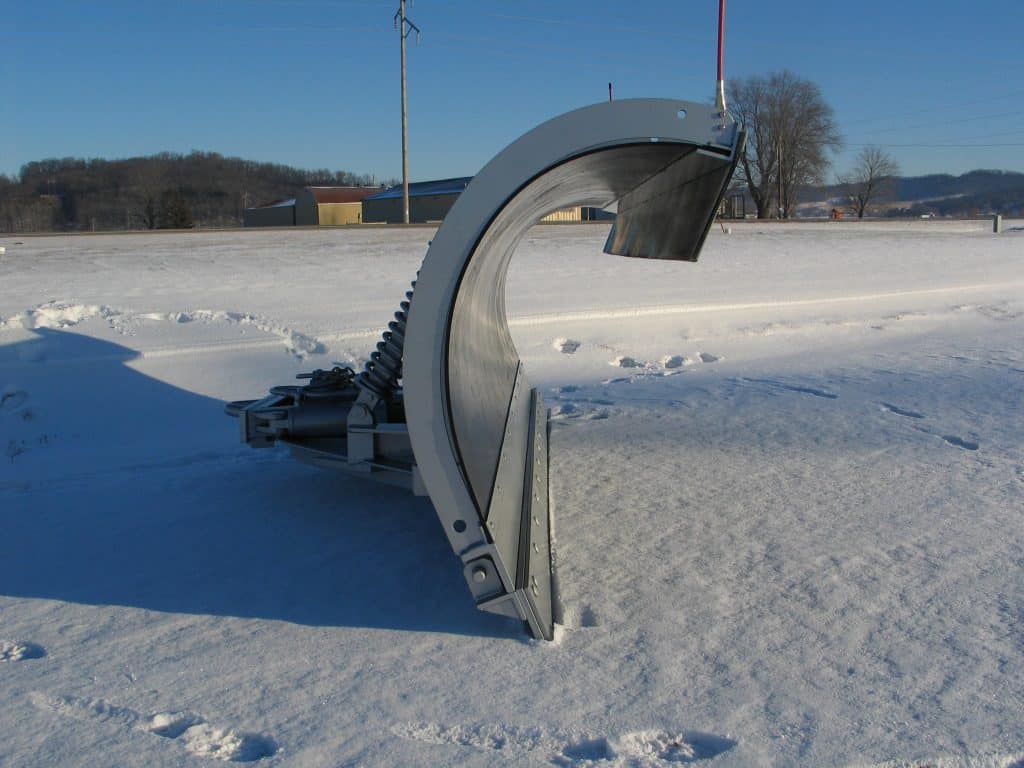

• 10’/11’/12’ Plow Length; 40″/43” Plow Height
  • 3/8” poly moldboard plow
  • Integral shield
  • Ten (10) ½” x 3 ½” one piece ribs
  • 1/2” plate welded to ribs for 1” bearing surface where push frame attached
  • Horizontal support angles are 3” x 3” x ½” w/ ¼” flat steel gusset
  • 3 1/2″ x 3 1/2″ x 3/8″ structural top angle
  • 3.5″ x 5″ x 3/4″ bottom angle with 1″ thick hinge blocks welded to angle
  • Trip section angle has 11/16” drilled holes to match cutting edge
  • Trip section angle assembly is ½” x 3” x 4” A36 Steel with ¾” thick hinge block welded to the angle
  • The angles pivot on a piece of 1 ¼” cold rolled 1040 steel held in place with 3/8” x 3/8” x ¾” pin keepers
  • The six torsion springs have a rod diameter of ¾”, outside diameter of 3 5/8”, total of 16 coils and overall length of coils to be 13”
  • 3 ½” x 3 ½” x ½” one piece structural angle semi-circle
  • Two 1” x 5 ½” x 10” positive stops set to allow 35 degree moldboard swings
  • 4” x 4” x 3/8” wall square tube 101 ½” long front pushframe cross tube
  • 4” x 4.5” x ½” ears to create 6 pivot points
  • Pushframe attached to moldboard with six 1 ¼” pins
  • Spring support plates 1” thick and allow for 3 moldboard pitch settings
  • Two compression trip assemblies
  • Springs are made from AISI 5160H Steel , ¾” diameter
  • Reversing cylinders are located above the semi-circle
  • Two 4” x 10” double acting reverse cylinders with 2” nitrited rods
  • Abrasion resistant hydraulic hoses
  • Hoses are ½” ID rated at 3000 psi working and 12000 psi burst pressures
  • All fasteners are grade 8
  • Loop attached to push frame
  • Screw adjustable parking jack stand
  • DXV Cushion valve to protect reversing cylinders (shipped loose)
  • Rubber snow flap, 3-ply, 1/2″ thick x 12″ wide (installed with carbon steel retainer bar)
  • Rubber snow flap, 3-ply, 1/2″ thick x 18″ wide (installed with carbon steel retainer bar)
  • Stainless Steel retainer bar, bolts, and nuts for rubber flap in lieu of carbon steel
  • Plow end markers, 27″ red cable type (installed)
  • Plow end markers, 36″ orange cable type (installed)
  • Plow end markers, 28″ orange plastic type (installed)
  • Plow end markers, 36″ orange plastic type (installed)
  • Plow end markers, 48″ orange plastic type (installed)
  • Crank adjustable parking stand, (installed)
  • Heavy Duty push frame
  • Shoe brackets only, installed (no shoe assembly included) (need to order shoe assembly separate)
  • Adjustable mushroom shoes with standard pads (installed)
  • Adjustable mushroom shoes with Ni-Hard pads (installed)
  • Adjustable shoes with Flat shoe pad style (installed)
  • Snow Wheel Shoe brackets & Snow Wheel Assembly
  • One Piece Trip Cutting Edge in lieu of moldboard trip (10′ & 11′ plow)
  • One Piece Trip Cutting Edge in lieu of moldboard trip (12′ plow)
  • Three piece trip cutting edge in lieu of moldboard trip (11′ & 12′ plows only)
  • Moldboard Trip/Trip cutting edge combination
  • Individually replaceable trip springs in lieu of standard trip springs (all trip edge plows)
  • 3/4″ x 4″ x 4″ lower trip edge angle ILO std. 1/2″ x 3″ x 4″ (all trip edge plows)
  • Curb shoe (installed)
  • Cutting edge shoe (installed)
  • Carbide cutting blades 3/4″ x 6″
  • 3/4” re-rod welded to each end of the plow
  • Guard rail corner cut
  • Weld on Customer ID Numbers on the Plow Moldboard (location details are required)
  • 3/16″ moldboard in lieu of standard
  • 10ga. 201 or 304 stainless steel moldboard in lieu of standard
  • 7ga. 201 or 304 stainless steel moldboard in lieu of standard
  • Various hitches available (truck & plow options) / snow flap plow markers / carbides / adjustable shoes std., flat, snow wheels
  • RTE option or TE or RTE/MBT or TE/MBT
